Dolomite Gypsum Raymond Grinding Mill Machine 0.5 To 10TPH
Raymond Grinding Mill Machine is the new generation of high-fine
powder grinding equipment with high-efficiency and closed cycle,
which can replace the ball mill. And it can meet different requests
under the combined effect of analyzer and fan.
Working Principle:
Raymond mill is mainly composed of main engine, an analyzer, a
draught fan, a finished product cyclone separator, a fine powder
cyclone separator and an air hose.

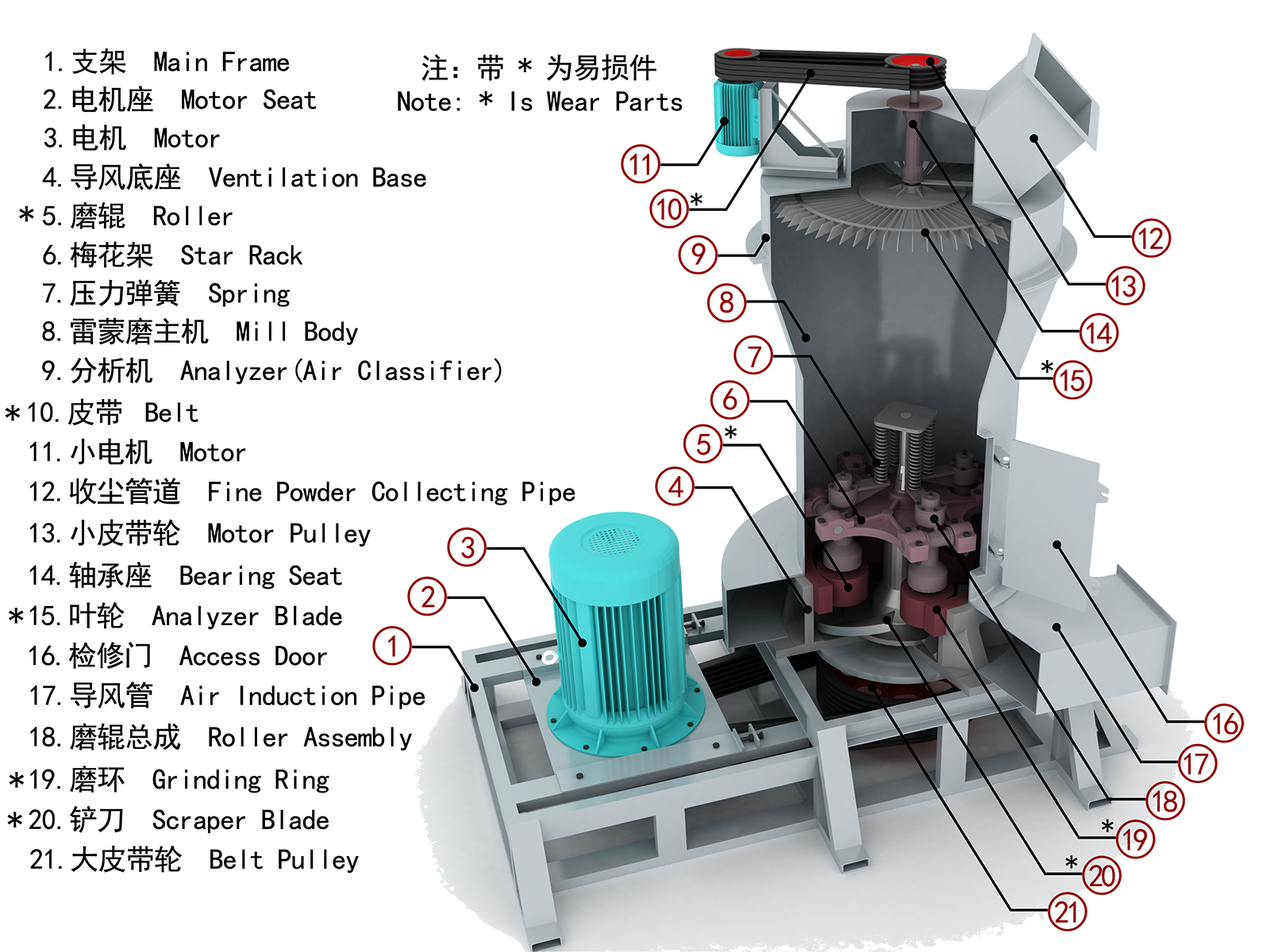

The main body consists of a frame, an air inlet volute, a shovel, a
grinding roller, a grinding ring, and a shell.
The jaw crusher crushes large pieces of material into smaller
particles within the feed size of the Raymond roller mill. The
discharging materials, after passing through the bucket elevator,
are sent into the storage hopper and vibrating screen for being
evenly and continuously ground in the main crushing chamber.

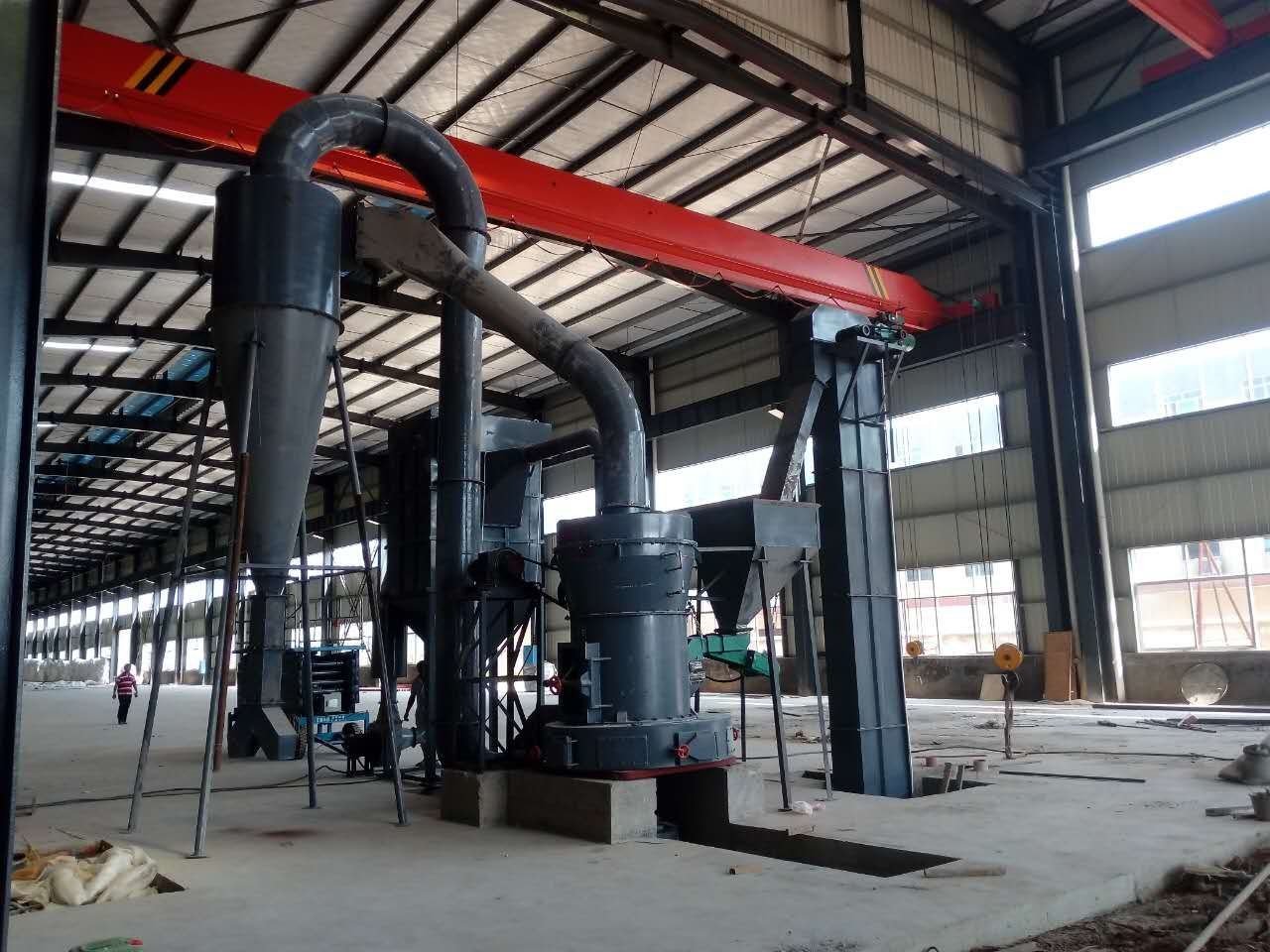

Product pictures
Difference between Raymond mill and ball mill
Processing different materials
Raymond mill is suitable for processing non-metallic materials that
are not too hard, such as limestone, gypsum, calcium carbonate;
ball mills can process metal materials and hard materials such as
potassium feldspar, quartz, metal ores, etc.
Processing method
Raymond mill can only be used for dry grinding, which has a
requirement of the material on the humidity; the ball mill can be
used for wet grinding, so there is no limit to the materials on the
humidity.
Different Output
The maximum output of Raymond mill is only 20-30 tons per hour,
while the output of ball mill is between 0.65 tons and 615 tons per
hour.
Discharging granularity
Raymond mill has a uniform particle size and does not need other
equipment for screening; ball mill has an uneven discharge, so the
finished powder needs to be sieved by powder separator.
Grinding fineness
Raymond mill can process a finer powder and produce even product
with the fineness 800 mesh while the ball mill can only reach 400
mesh.
Much noise produced
The noise of Raymond mill is much lower than that of the ball mill.
Raymond mill spare parts
The main wearing parts of raymond mill are grinding roller and ring
and the lifting shovel. All of them are made of high wearable high
manganese alloy Mn13Cr2.
Product specifications
| Model | Roller Number | Roller Size (mm) | Feeding Size (mm) | Output Size (mm) | Capacity (T) | Motor Power (kw) | Weight (t) |
| 3R1510 | 3 | 150*100 | 15 | 0.2-0.044 | 0.3-1.2 | 7.5 | 2 |
| 3R2115 | 3 | 210*150 | 15 | 0.2-0.044 | 0.4-1.6 | 15 | 3.6 |
| 3R2615 | 3 | 260*150 | 20 | 0.2-0.044 | 0.8-2.5 | 18.5 | 4.2 |
| 3R2715 | 3 | 270*150 | 20 | 0.2-0.044 | 0.9-2.8 | 22 | 4.8 |
| 3R2715 | 3 | 300*150 | 20 | 0.2-0.044 | 1.2-3.5 | 30 | 5.3 |
| 4R3016 | 4 | 300*160 | 20 | 0.2-0.044 | 1.2-4 | 30 | 8.5 |
| 4R3216 | 4 | 320*160 | 25 | 0.2-0.044 | 1.8-4.5 | 37 | 15 |
| 5R4121 | 5 | 410*210 | 30 | 0.2-0.044 | 3-9.5 | 75 | 24 |
Installation drawing
For each raymond mill we sold, we will offer the customer
installation drawing before installation. If customer needs, we
will also send engineer to local site for installation and
commissioning guidance.
